750-438 | WAGO
Input module for 750 series, Inputs: 2, (W x H x D) 12 x 100 x 678 mm, 750-438
Unit Price (€ / pc.)
148.9523 € *
Available: 0 pcs.
Leadtime: 5 Weeks **

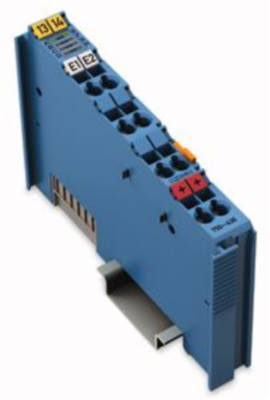

Digital input, 750-438, WAGO
2-channel digital input, NAMUR, Intrinsically safe.
Features
- This digital input module records binary signals from sensors operating in Zone 0+1 hazardous areas
- NAMUR sensors, optocouplers, mechanical contacts or other actuating elements can also be connected via intrinsically safe devices
- The WAGO I/O System 750 must be installed either in Zone 2 or in a non-hazardous area. Each sensor is supplied with a short-circuit-protected voltage of 8.2 V
- Field and system levels are electrically isolated
Technical specifications
| Depth | 678 mm | |
| Assembly | DIN rail | |
| Number of digital inputs | 2 | |
| Width | 12 mm | |
| Height | 100 mm | |
| Version | input module | |
| Suitable for | 750 series |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85389099 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | boron trioxide, lead monoxide, lead |
| SVHC free | No |
| RoHS conform | Yes |
