750-1500 | WAGO
Output module for 750 series, Outputs: 16, (W x H x D) 12 x 100 x 741 mm, 750-1500
Unit Price (€ / pc.)
162.7444 € *
Available: 0 pcs.
Leadtime: 5 Weeks **

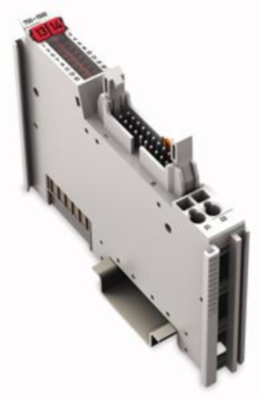

Digital output, 750-1500, WAGO
16-channel digital output, 24 VDC, 0.5 A, Ribbon cable.
Features
- This digital output module features 16 channels in a width of just 12 mm
- It transmits binary control signals from the automation device to the connected actuators (e.g., magnetic valves, contactors, transmitters, relays or other electrical loads)

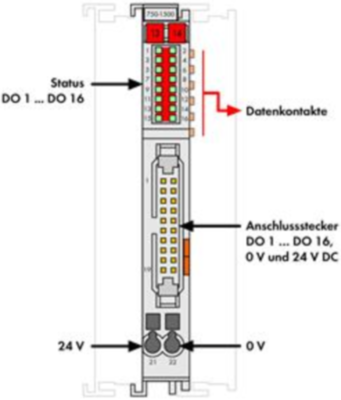

- The module connects to electronic modules via a 20-pole ribbon cable
- A green LED indicates the signal state of each channel

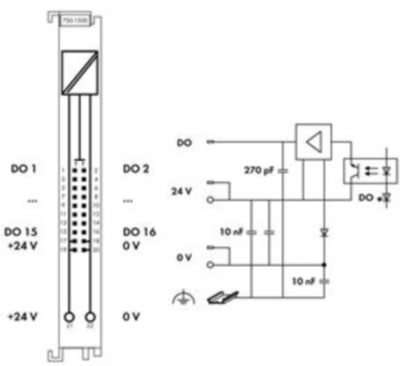

- Field and system levels are electrically isolated
Technical specifications
| Depth | 741 mm | |
| Assembly | DIN rail | |
| Width | 12 mm | |
| Height | 100 mm | |
| Number of digital outputs | 16 | |
| Version | output module | |
| Suitable for | 750 series |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85371098 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Diphenyl(2,4,6-trimethylbenzoyl)phosphine oxide, lead |
| SVHC free | No |
| RoHS conform | Yes |
