890-825 | WAGO
Socket, 5 pole, gray, 890-825
Unit Price (€ / pc.)
4.0341 € *
Available: 0 pcs.
Leadtime: 4 Weeks **

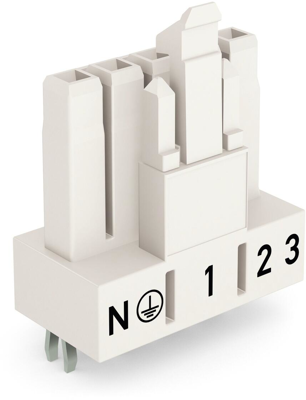

Socket, 890-825, WAGO
Socket for PCBs, straight, 5-pole, code A, white.
Features
- Protected against mismating
- Overvoltage category: III
- Pollution degree: 3
- Flammability class per UL94: V0
Technical specifications
| Version | socket | |
| Design | angled | |
| Colour | gray | |
| Rated voltage IEC | 250 V | |
| Rated voltage UL/CSA | 600 V | |
| Rated current IEC | 13 A | |
| Rated current UL/CSA | 12 A | |
| Pin number | 5 pole | |
| Pin temperature | 85 °C | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 39269097 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
