890-775 | WAGO

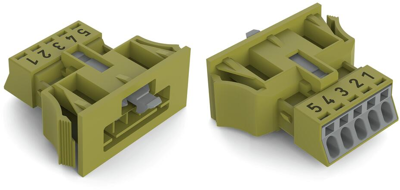

Plug, 5 pole, snap-in, push-in, 0.25-1.5 mm², light green, 890-775
Unit Price (€ / pc.)
4.6648 € *
Standard delivery time from the manufacturer is: 4 Weeks
Plug, 890-775, WAGO
The 890-775 is a connector/plug that supports fast, reliable installation and it is used on PCBs, in control cabinets or for connecting lights. This pluggable installation connector allows you to establish connections according to an enormous variety of requirements in next to no time.
Features
- Protection against mismating
- Convenient installation and commissioning
- Overvoltage category: III
- Pollution degree: 3
- Flammability class per UL94: V0
Applications
- For automation controllers
- For lighting applications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Cable cross-section | 0.25-1.5 mm² | |
| Product type | plug | |
| Pin temperature | 85 °C | |
| Connection | push-in | |
| Colour | light green | |
| Rated current UL/CSA | 12 A | |
| Rated current IEC | 16 A | |
| Type of locking | Yes | |
| Rated voltage UL/CSA | 600 V | |
| Assembly | snap-in | |
| Rated voltage IEC | 400 V | |
| Design | straight | |
| Pin number | 5 pole |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PL |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
