890-774/072-000 | WAGO
Plug, 4 pole, snap-in, push-in, 0.25-1.5 mm², light green, 890-774/072-000
Unit Price (€ / pc.)
3.8556 € *
Available: 0 pcs.
Leadtime: 4 Weeks **

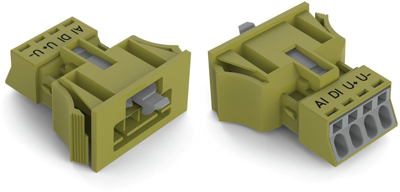

Plug, 890-774/072-000, WAGO
The 890-774/072-000 is a connector/plug that is a pluggable solution for your application in control cabinets, on PCBs or for lighting connections.
Features
- Protection against mismating
- Convenient installation and commissioning
- Overvoltage category: III
- Pollution degree: 3
- Flammability class per UL94: V0
Applications
- For signal transmission
- For power transmission
Technical specifications
| Colour | light green | |
| Pin temperature | 85 °C | |
| Type of locking | Yes | |
| Rated current UL/CSA | 12 A | |
| Assembly | snap-in | |
| Rated voltage UL/CSA | 600 V | |
| Rated current IEC | 16 A | |
| Rated voltage IEC | 400 V | |
| Cable cross-section | 0.25-1.5 mm² | |
| Pin number | 4 pole | |
| Version | plug | |
| Design | straight | |
| Connection | push-in |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
