890-765 | WAGO
Socket, 5 pole, snap-in, push-in, 0.25-1.5 mm², light green, 890-765
Unit Price (€ / pc.)
5.5097 € *
Available: 0 pcs.
Leadtime: 4 Weeks **

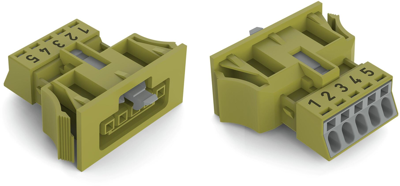

Socket, 890-765, WAGO
The 890-765 is a connector/socket with locking latch that is used on PCBs, in control cabinets or for connecting lights. This pluggable installation connector allows you to establish connections according to an enormous variety of requirements in no time flat.
Features
- Protection against mismating
- Convenient installation and commissioning
- Overvoltage category: III
- Pollution degree: 3
- Flammability class per UL94: V0
Applications
- For lighting applications
Technical specifications
| Colour | light green | |
| Pin temperature | 85 °C | |
| Type of locking | Yes | |
| Rated current UL/CSA | 12 A | |
| Assembly | snap-in | |
| Rated voltage UL/CSA | 600 V | |
| Rated current IEC | 16 A | |
| Rated voltage IEC | 400 V | |
| Cable cross-section | 0.25-1.5 mm² | |
| Pin number | 5 pole | |
| Version | socket | |
| Design | straight | |
| Connection | push-in |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
