890-295/080-000 | WAGO
Plug, 5 pole, spring-clamp connection, 0.25-1.5 mm², pink, 890-295/080-000
Unit Price (€ / pc.)
4.3554 € *
Standard delivery time from the manufacturer is: 4 Weeks

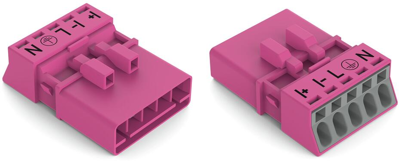

Plug, 890-295/080-000, WAGO
The 890-295/080-000 is a connector/plug that provides the foundation for installation of solid and fine-stranded conductors. It is used on PCBs, in control cabinets or for connecting lights. This pluggable installation connector allows you to establish connections according to an enormous variety of requirements in no time flat.
Features
- Protection against mismating
- Overvoltage category: III
- Pollution degree: 3
- Flammability class per UL94: V0
Applications
- For lighting applications
Technical specifications
Filter | Property | Value |
---|---|---|
Rated voltage UL/CSA | 600 V | |
Rated current UL/CSA | 12 A | |
Cable cross-section | 0.25-1.5 mm² | |
Pin temperature | 85 °C | |
Design | straight | |
Colour | pink | |
Pin number | 5 pole | |
Rated voltage IEC | 400 V | |
Product type | plug | |
Rated current IEC | 16 A | |
Type of locking | Yes | |
Connection | spring-clamp connection |
Download
Logistics
Property | Value |
---|---|
Customs tariff number | 85366990 |
Country of origin | PL |
Compliance
Property | Value |
---|---|
RoHS conform | Yes |
Date of RoHS guidelines | 3/31/15 |
SVHC free | Yes |
