890-284/081-000 | WAGO

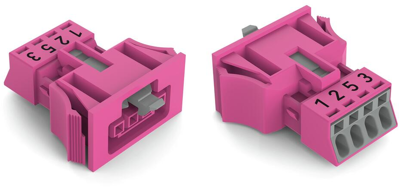

Socket, 4 pole, spring-clamp connection, 0.25-1.5 mm², pink, 890-284/081-000
Unit Price (€ / pc.)
4.6648 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Socket, 890-284/081-000, WAGO
The 890-284/081-000 is a connector/socket that is used on PCBs, in control cabinets or for connecting lights. This pluggable installation connector allows you to establish connections according to an enormous variety of requirements in next to no time.
Features
- Protection against mismating
- Convenient installation and commissioning
- Overvoltage category: III
- Pollution degree: 3
- Flammability class per UL94: V0
Technical specifications
| Colour | pink | |
| Pin temperature | 85 °C | |
| Type of locking | Yes | |
| Rated current UL/CSA | 12 A | |
| Rated voltage UL/CSA | 600 V | |
| Rated current IEC | 16 A | |
| Rated voltage IEC | 400 V | |
| Cable cross-section | 0.25-1.5 mm² | |
| Pin number | 4 pole | |
| Version | socket | |
| Design | straight | |
| Connection | spring-clamp connection |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
