770-805 | WAGO

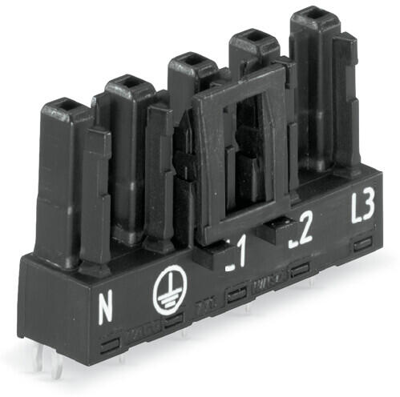

Socket, 5 pole, spring-clamp connection, black, 770-805
Unit Price (€ / pc.)
3.8913 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Socket, 770-805, WAGO
Socket for PCBs, straight, 5-pole, code A, black.
Features
- Protected against mismating
- Overvoltage category: III
- Pollution degree: 3
- Flammability class per UL94: V0
Technical specifications
| Rated voltage IEC | 400 V | |
| Connection | spring-clamp connection | |
| Rated current UL/CSA | 23 A | |
| Pin number | 5 pole | |
| Type of locking | Yes | |
| Pin temperature | 85 °C | |
| Colour | black | |
| Version | socket | |
| Rated voltage UL/CSA | 600 V | |
| Rated current IEC | 25 A | |
| Design | straight |
Download
Logistics
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
