770-3115/011-000 | WAGO
Plug, 5 pole, spring-clamp connection, blue, 770-3115/011-000
Unit Price (€ / pc.)
3.6414 € *
Available: 0 pcs.
Leadtime: 4 Weeks **

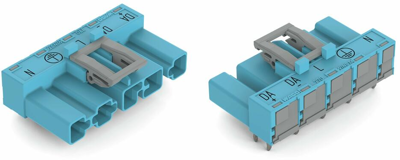

Plug, 770-3115/011-000, WAGO
Plug for PCBs, angled, 5-pole, code I, blue.
Features
- Protection against mismating
- Push-in CAGE CLAMP spring pressure connection technology for direct termination of solid conductors
- Overvoltage category: III
- Pollution degree: 3
- Flammability class per UL94: V0
Technical specifications
| Connection | spring-clamp connection | |
| Version | plug | |
| Design | angled | |
| Colour | blue | |
| Rated voltage IEC | 400 V | |
| Rated voltage UL/CSA | 600 V | |
| Rated current IEC | 25 A | |
| Rated current UL/CSA | 23 A | |
| Pin number | 5 pole | |
| Pin temperature | 85 °C | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
