770-213/002-000 | WAGO

Plug, 3 pole, spring-clamp connection, 0.5-4.0 mm², black, 770-213/002-000

Order No.: 44P6873
EAN: 4045454072421
MPN:
770-213/002-000
Series: WINSTA MIDI

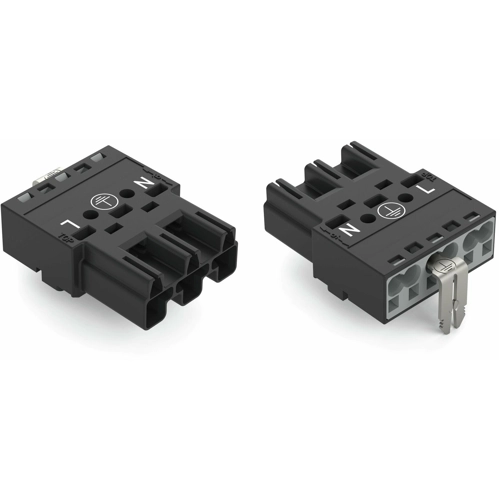

770-213/002-000 WAGO Device Connectors Image 1
770-213/002-000 WAGO Device Connectors Image 2
770-213/002-000 WAGO Device Connectors Image 3
Image may differ
Unit Price (€ / pc.)
4.1650 € *
Available: 100 pcs.
Total Price:
4.17 € *
Price list
Quantity
Price per unit*
1 pcs.
4.1650 €
10 pcs.
3.8318 €
50 pcs.
3.4867 €
100 pcs.
3.1416 €
*incl. VAT plus shipping costs
Subject to prior sale

Plug, 770-213/002-000, WAGO

Plug, with direct ground contact, 3-pole, 4.00 mm², black.

Features

  • Protected against mismating
  • Two wire connections per pole for loops or bridges
  • Overvoltage category: III
  • Pollution degree: 3
  • Flammability class per UL94: V0
Technical specifications
Filter Property Value
Rated voltage UL/CSA 600 V
Rated voltage IEC 250 V
Pin number 3 pole
Colour black
Rated current UL/CSA 23 A
Cable cross-section 0.5-4.0 mm²
Connection spring-clamp connection
Pin temperature 85 °C
Design straight
Rated current IEC 25 A
Type of locking Yes
Product type plug
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
