770-1769 | WAGO

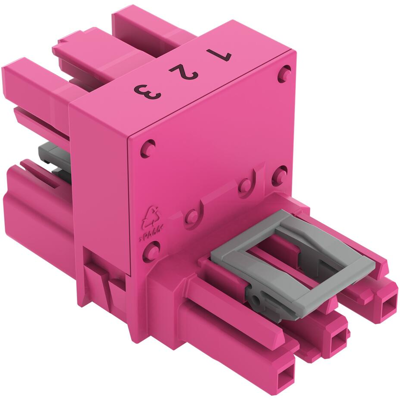

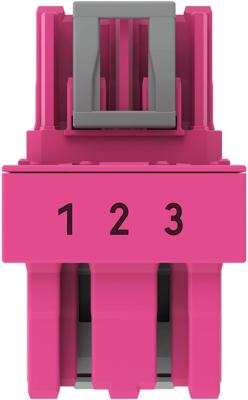

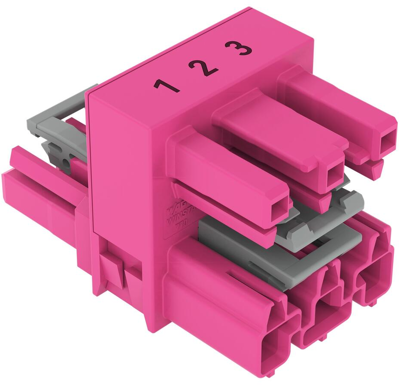

H-distributor, 3 pole, snap-in, spring-clamp connection, pink, 770-1769
Unit Price (€ / pc.)
10.0912 € *
Available: 0 pcs.
Leadtime: 5 Weeks **
Distribution connector, 770-1769, WAGO
The WINSTA MIDI distribution connector is protected against ingress by solid objects in accordance with protection type IP20. This product has a current rating of 25 A – so it is suitable for high power loads. The WINSTA MIDI Pluggable Connection System with Push-in CAGE CLAMP spring pressure connection technology facilitates safe electrification.
Features
- For automation controllers
- Ready to install and use immediately
- Quick replacement of defective units during ongoing operation
Technical specifications
| Switch illuminated | No | |
| Colour | pink | |
| Type of locking | Yes | |
| Rated current UL/CSA | 16 A | |
| Assembly | snap-in | |
| Rated voltage UL/CSA | 600 V | |
| Rated current IEC | 25 A | |
| Rated voltage IEC | 250 V | |
| Fuse holder present | No | |
| Pin number | 3 pole | |
| Version | H-distributor | |
| Design | straight | |
| Power switch available | No | |
| Connection | spring-clamp connection | |
| Line filter present | No |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
