770-105 | WAGO

Socket, 5 pole, spring-clamp connection, 0.5-4.0 mm², black, 770-105

Order No.: 46F8224
EAN: 4044918252157
MPN:
770-105
Series: WINSTA MINI

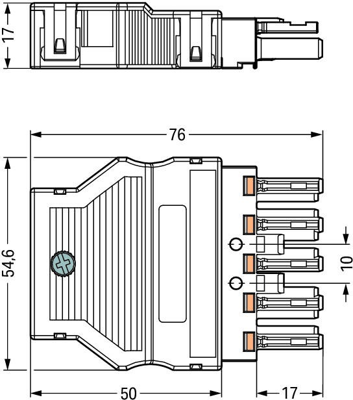

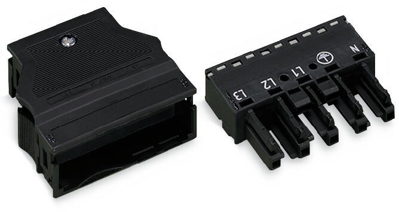

770-105 WAGO Device Connectors Image 1
770-105 WAGO Device Connectors Image 2
770-105 WAGO Device Connectors Image 3
Image may differ
Unit Price (€ / pc.)
10.4601 € *
Available: 74 pcs.
Total Price:
10.46 € *
Price list
Quantity
Price per unit*
1 pcs.
10.4601 €
10 pcs.
9.6271 €
50 pcs.
8.7584 €
100 pcs.
7.8778 €
*incl. VAT plus shipping costs
Subject to prior sale

Socket, 770-105, WAGO

Socket, with strain relief housing, 5-pole, code A, 4.00 mm², black.

Features

  • Protected against mismating
  • Two wire connections per pole for loops or bridges
  • Overvoltage category: III
  • Pollution degree: 3
  • Flammability class per UL94: V0
Technical specifications
Filter Property Value
Rated voltage UL/CSA 600 V
Rated voltage IEC 400 V
Pin number 5 pole
Power switch available No
Colour black
Rated current UL/CSA 23 A
Cable cross-section 0.5-4.0 mm²
Connection spring-clamp connection
Pin temperature 85 °C
Design straight
Rated current IEC 25 A
Cable diameter 9 to 13 mm
Type of locking Yes
Product type socket
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
