770-104 | WAGO

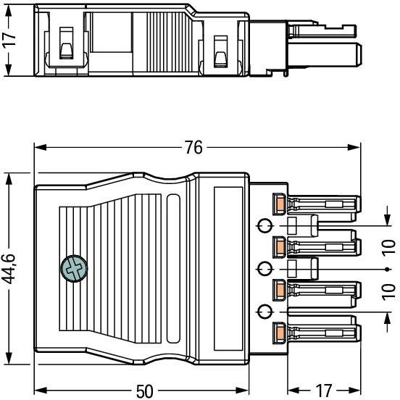

Socket, 4 pole, spring-clamp connection, 0.5-4.0 mm², black, 770-104
Unit Price (€ / pc.)
7.3542 € *
Available: 0 pcs.
Leadtime: On Request **

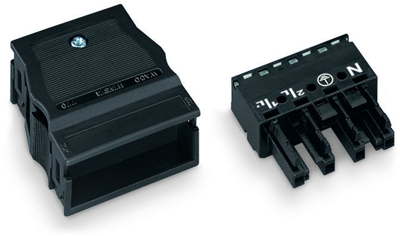

Socket, 770-104, WAGO
Socket, with strain relief housing, 4-pole, code A, 4.00 mm², black.
Features
- Protected against mismating
- Two wire connections per pole for loops or bridges
- Overvoltage category: III
- Pollution degree: 3
- Flammability class per UL94: V0
Technical specifications
| Connection | spring-clamp connection | |
| Version | socket | |
| Design | straight | |
| Colour | black | |
| Cable diameter | 9 to 13 mm | |
| Cable cross-section | 0.5-4.0 mm² | |
| Rated voltage IEC | 400 V | |
| Rated voltage UL/CSA | 600 V | |
| Rated current IEC | 25 A | |
| Rated current UL/CSA | 23 A | |
| Line filter present | No | |
| Switch illuminated | No | |
| Power switch available | No | |
| Pin number | 4 pole | |
| Fuse holder present | No | |
| Pin temperature | 85 °C |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
