267-123 | WAGO
Socket, 3 pole, Push-wire connection, 1.0 mm², white, 267-123
Unit Price (€ / pc.)
4.2245 € *
Available: 0 pcs.
Leadtime: On Request **

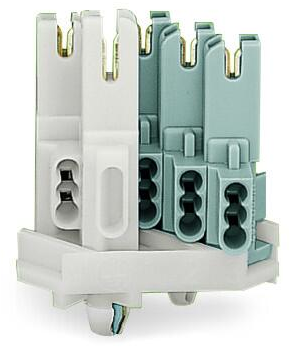

Socket, 267-123, WAGO
Female connector, with direct ground contact, with snap-in mounting feet, 3-pole, 1.00 mm², white.
Features
- Future system expansions possible
- Overvoltage category: III
- Pollution degree: 2
- Flammability class per UL94: V0
- Compact design
Technical specifications
| Connection | Push-wire connection | |
| Version | socket | |
| Colour | white | |
| Cable cross-section | 1.0 mm² | |
| Rated voltage IEC | 500 V | |
| Rated current IEC | 6 A | |
| Line filter present | No | |
| Switch illuminated | No | |
| Power switch available | No | |
| Pin number | 3 pole | |
| Fuse holder present | No | |
| Pin temperature | 105 °C | |
| Type of locking | No |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
