262-192 | WAGO

2-wire terminal block Ex e II, 12 pole, pitch 7 mm, 0.5-4.0 mm², AWG 20-12, straight, 23 A, 550 V, spring-cage connection, 262-192

Order No.: 43P9641
EAN: 4044918642118
MPN:
262-192
Series: 262

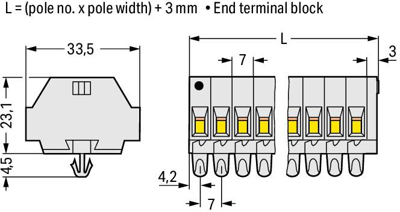

262-192 WAGO Connecting Blocks Image 1

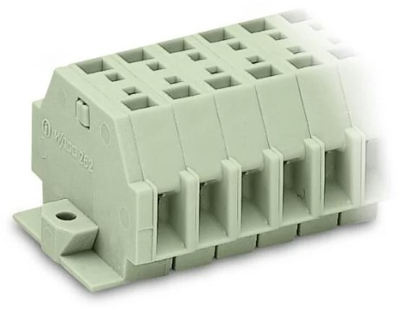

262-192 WAGO Connecting Blocks Image 2
Image may differ
Unit Price (€ / pc.)
9.8889 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
9.89 € *
Price list
Quantity
Price per unit*
1 pcs.
9.8889 €
10 pcs.
9.0916 €
50 pcs.
8.2705 €
100 pcs.
7.4494 €
*incl. VAT plus shipping costs
Subject to prior sale

Through terminal block, 262-192, WAGO

This through terminal block 262-192 is designed for quick and easy connections. Whether for industrial or building applications, you can use our through terminal blocks to connect electrical conductors quickly and safely. We offer variants for both classic through-wiring and potential distribution. Strip lengths must be between 9 mm and 10 mm when connecting conductors to this through terminal block. Featuring conductor terminals along with CAGE CLAMP, this connector is highly versatile. Our CAGE CLAMP connection provides a reliable and maintenance-free way to connect all types of conductors. You do not need to prepare the conductor in any way, such as crimping ferrules. This through terminal block is suitable for conductor cross sections ranging from 0.5 mm² to 4 mm². It features one level and twenty-four clamping points for connecting twelve potentials / 12 poles. The light gray housing is made of polyamide (PA66) for insulation. An operating tool is used to operate this mini rail-mount terminal block. The side-entry wiring makes it possible to connect copper conductors.

Technical specifications
Filter Property Value
Grid 7 mm
Pin number 12 pole
Rated current 23 A
Cable cross-section 0.5-4.0 mm²
AWG cross-section AWG 20-12
Rated voltage 550 V
Design straight
Contact connection spring-cage connection
Logistics
Property Value
Customs tariff number 85369010
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
