262-186 | WAGO
2-wire terminal block Ex e II, 6 pole, pitch 7 mm, 0.5-4.0 mm², AWG 20-12, straight, 23 A, 550 V, spring-cage connection, 262-186
Unit Price (€ / pc.)
3.4272 € *
Available: 0 pcs.
Leadtime: On Request **

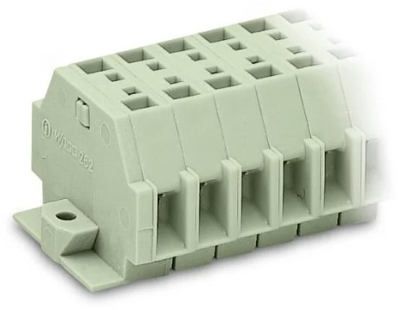

2-Conductor terminal strip, 262-186, Wago
2-conductor terminal strip Ex e II with snap-in feet for sheet thickness 0.6 - 1.2 mm mounting hole Ø 3.5 mm also on aluminum rail 210-154 or with mounting foot 209-120 on TS 35 suitable for applications Ex e II 6-pole light gray
Technical specifications
| AWG cross-section | AWG 20-12 | |
| Design | straight | |
| Contact connection | spring-cage connection | |
| Cable cross-section | 0.5-4.0 mm² | |
| Rated voltage | 550 V | |
| Rated current | 23 A | |
| Pin number | 6 pole | |
| Grid | 7 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
