262-189 | WAGO

2-wire terminal block Ex e II, 9 pole, pitch 7 mm, 0.5-4.0 mm², AWG 20-12, straight, 23 A, 550 V, spring-cage connection, 262-189

Order No.: 43P9638
EAN: 4044918642088
MPN:
262-189
Series: 262

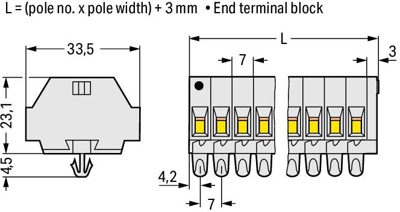

262-189 WAGO Connecting Blocks Image 1

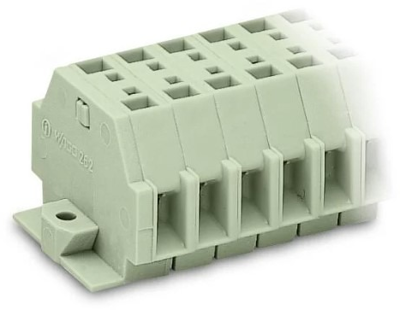

262-189 WAGO Connecting Blocks Image 2
Image may differ
Unit Price (€ / pc.)
5.1408 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
5.14 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
5.1408 €

Through terminal block, 262-189, WAGO

Our through terminal block 262-189 is designed for seamless electrical installations. Our mini rail-mount terminal blocks are perfect for tight spaces thanks to their compact design. You can also choose from a range of mounting and actuation variants for unparalleled flexibility, making it easy to select the ideal mini terminal block for each use. Ensure that the strip lengths are between 9 mm and 10 mm when connecting conductors to this through terminal block. This product incorporates conductor terminals and utilizes CAGE CLAMP. Our reliable and maintenance-free CAGE CLAMP connection makes it easy to connect all conductor types without having to prepare the conductor. For example, you don't need to crimp ferrules. Depending on the type of conductor, this through terminal block is ideal for conductor cross sections ranging from 0.5 mm² to 4 mm². Up to nine potentials / nine poles can be connected to this terminal strip using eighteen clamping points on one level. The light gray housing is made of polyamide (PA66) for insulation. An operating tool is used to operate this mini rail-mount terminal block. You can connect copper conductors via side-entry wiring.

Technical specifications
Filter Property Value
Grid 7 mm
Pin number 9 pole
Rated current 23 A
Cable cross-section 0.5-4.0 mm²
AWG cross-section AWG 20-12
Rated voltage 550 V
Design straight
Contact connection spring-cage connection
Logistics
Property Value
Customs tariff number 85369010
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
