M30020.01.PA | Vogt
Hexagonal spacer bolt, External/Internal Thread, M3/M3, 20 mm, polyamide
Order No.: 18H3687
EAN: 4099889493412
MPN:
M30020.01.PA
Unit Price (€ / pc.)
0.4998 € *
Available: 2,123 pcs.
Leadtime: 2 Weeks **
Total Price:
5.00 € *
Price list
Quantity
Price per unit*
10 pcs.
0.4998 €
50 pcs.
0.4522 €
100 pcs.
0.3689 €
500 pcs.
0.3332 €
1000 pcs.
0.2916 €
*incl. VAT plus shipping costs
**Subject to prior sale
Hexagonal spacer bolts, polyamide 6.6, type 543../544.
With inner and outer thread

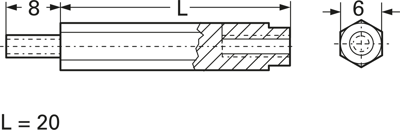

Hexagonal spacer bolts, M 3 thread (width across flats 6), type 543.
Technical specifications
| Version | External/Internal Thread | |
| Outer diameter | 3 mm | |
| External thread length | 8 mm | |
| Design | hexagon | |
| Bolt length | 20 mm | |
| Colour | black | |
| Thread size | M3/M3 | |
| Inner diameter | 3 mm | |
| Internal thread length | 10 mm | |
| Length | 28 mm | |
| Material | polyamide | |
| spanner size | 6 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 39269097 |
| Original Packaging | Bag with 1,000 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
