3937S | Vogt
Insulated flat plug sleeve, 6.3 x 0.8 mm, 0.5 to 1.0 mm², AWG 22 to 18, Brass, tin-plated, red, 3937S
Order No.: 07F308
MPN:
3937S
EAN: 4099889618785
Images may differ
Unit Price (€ / pc.)
0.2582 € *
Available: 6,156 pcs.
Next delivery: 4,000 pcs. on 2023-12-13
Leadtime: 4 Weeks **
Total Price:
6.46 € *
Quantity
Price per unit*
25 pcs.
0.2582 €
100 pcs.
0.2273 €
500 pcs.
0.2047 €
1000 pcs.
0.1809 €
5000 pcs.
0.1571 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description

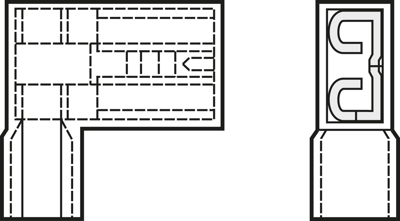

Receptacle, angled, fully insulated, type Vogt 39.
Made of tinned brass; Insulation (PA)/current rating: red 0.5 to 1.0 mm²/10 A. Thermal resistance: 55 to +105 °C.
Technical attributes:
Type: 3937s, mating width, mating thickness: 6.3 mm, 0.8 mm, color: red.
Technical specifications
| Connection | crimp connection | |
| Version | flat plug sleeve | |
| AWG cross-section | AWG 22 to 18 | |
| Insulation colour | red | |
| Suitable for | 6.3 x 0.8 mm | |
| Isolated | Yes | |
| Length | 15 mm | |
| Cable cross-section | 0.5 to 1.0 mm² | |
| Material | Brass, tin-plated |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85389099 |
| Original Packaging | Bag with 500 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
Variations
Search results: 1 item in 2 variations
*incl. VAT plus shipping costs
Order No.:
07F310
Manufacturer:
Vogt
Manufacturer SKU:
3939S
Total Price: 6.46 € *
25 pcs.
0.2582 €
100 pcs.
0.2273 €
500 pcs.
0.2047 €
1000 pcs.
0.1809 €
5000 pcs.
0.1571 €
Available: 10,428 pcs.
Leadtime: 1 Week **
1.5 to 2.5 mm²
blue
AWG 16 to 14
Brass, tin-plated
flat plug sleeve
15 mm
crimp connection
6.3 x 0.8 mm
Yes
Order No.:
07F308
Manufacturer:
Vogt
Manufacturer SKU:
3937S
Total Price: 6.46 € *
25 pcs.
0.2582 €
100 pcs.
0.2273 €
500 pcs.
0.2047 €
1000 pcs.
0.1809 €
5000 pcs.
0.1571 €
Available: 6,156 pcs.
Next delivery: 4,000 pcs. on 2023-12-13
Leadtime: 4 Weeks **
0.5 to 1.0 mm²
red
AWG 22 to 18
Brass, tin-plated
flat plug sleeve
15 mm
crimp connection
6.3 x 0.8 mm
Yes
