Vogt

3829A.67 | Vogt

Uninsulated flat plug sleeve with branch, 4.8 x 0.8 mm, 0.5-1.0 mm², AWG 20-18, Brass, tin plated, 3829A.67

Order No.:  07F356
MPN:
3829A.67
EAN: 4099889611922
Vogt
default L
default S
Images may differ
Unit Price (€ / pc.)
0.3332 € *
Available: 400 pcs.
Leadtime: 2 Weeks **
Total Price:
3.33 € *
Quantity
Price per unit*
10 pcs.
0.3332 €
50 pcs.
0.2951 €
100 pcs.
0.2606 €
500 pcs.
0.2273 €
1000 pcs.
0.2047 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description

Flat plug distributor, not insulated, type Vogt 3829

Made of pure tin-plated brass, compliant with DIN 46342 part 1, tab with 30° angle.

Technical attributes:

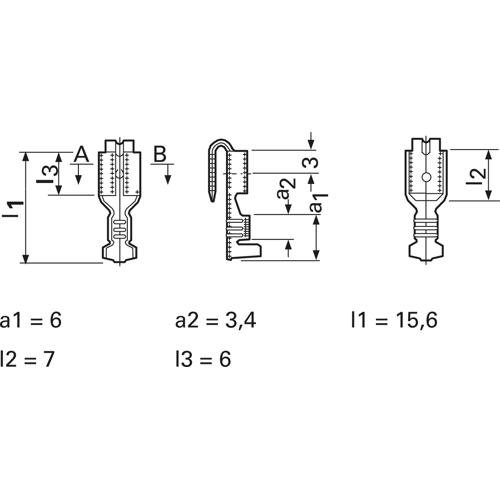

Type: 3829A.67, mating width x mating thickness: 4.8x0.8 mm, for conductor cross-section: 0.5 to 1.0 mm².

Technical specifications
Connection crimp connection
Version flat plug sleeve with branch
AWG cross-section AWG 20-18
Suitable for 4.8 x 0.8 mm
Isolated No
Length 15.6 mm
Cable cross-section 0.5-1.0 mm²
Material Brass, tin plated
Nominal size according to DIN DIN 46342
Show similar products (0)
Logistics
Country of origin CH
Customs tariff number 85369010
Original Packaging Bag with 500 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
Variations
Search results: 1 item in 4 variations
*incl. VAT plus shipping costs
Item description
Total
Price list
Availability
Cable cross-section
Length
Suitable for
AWG cross-section
Material
Version
Connection
Isolated
Uninsulated flat plug sleeve with branch, 6.3 x 0.8 mm, 0.5-1.5 mm², AWG 20-16, Brass, tin plated, 3838AN.67
Order No.:
 07F365
Manufacturer:
 Vogt
Manufacturer SKU:
 3838AN.67
Total Price: 2.52 € *
10 pcs.
0.2523 €
50 pcs.
0.2190 €
100 pcs.
0.1940 €
500 pcs.
0.1678 €
1000 pcs.
0.1511 €
Available: 206 pcs.
Leadtime: 2 Weeks **
0.5-1.5 mm²
19.5 mm
6.3 x 0.8 mm
AWG 20-16
Brass, tin plated
flat plug sleeve with branch
crimp connection
No
Uninsulated flat plug sleeve with branch, 4.8 x 0.8 mm, 0.5-1.0 mm², AWG 20-18, Brass, tin plated, 3829A.67
Order No.:
 07F356
Manufacturer:
 Vogt
Manufacturer SKU:
 3829A.67
Total Price: 3.33 € *
10 pcs.
0.3332 €
50 pcs.
0.2951 €
100 pcs.
0.2606 €
500 pcs.
0.2273 €
1000 pcs.
0.2047 €
Available: 400 pcs.
Leadtime: 2 Weeks **
0.5-1.0 mm²
15.6 mm
4.8 x 0.8 mm
AWG 20-18
Brass, tin plated
flat plug sleeve with branch
crimp connection
No
Uninsulated flat plug sleeve with branch, 6.3 x 0.8 mm, 1.5-2.5 mm², AWG 16-14, Brass, tin plated, 3838BN.67
Order No.:
 07F367
Manufacturer:
 Vogt
Manufacturer SKU:
 3838BN.67
Total Price: 3.02 € *
10 pcs.
0.3023 €
50 pcs.
0.2618 €
100 pcs.
0.2321 €
500 pcs.
0.2035 €
1000 pcs.
0.1833 €
Available: 1,050 pcs.
Leadtime: 2 Weeks **
1.5-2.5 mm²
19.5 mm
6.3 x 0.8 mm
AWG 16-14
Brass, tin plated
flat plug sleeve with branch
crimp connection
No
Uninsulated flat plug sleeve with branch, 4.8 x 0.8 mm, 1.5-2.5 mm², AWG 16-14, Brass, tin plated, 3829B.67
Order No.:
 07F358
Manufacturer:
 Vogt
Manufacturer SKU:
 3829B.67
Total Price: 3.45 € *
10 pcs.
0.3451 €
50 pcs.
0.3082 €
100 pcs.
0.2725 €
500 pcs.
0.2356 €
1000 pcs.
0.2130 €
Available: 570 pcs.
Leadtime: 10 Weeks **
1.5-2.5 mm²
15.6 mm
4.8 x 0.8 mm
AWG 16-14
Brass, tin plated
flat plug sleeve with branch
crimp connection
No
*incl. VAT plus shipping costs
**Subject to prior sale
