KVS800JB-RD-82RAA | Vitrohm

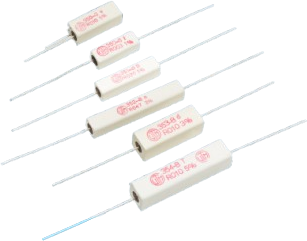

Wirewound resistor, 82 Ω, 7 W, ±5 %

Order No.: 37E346
EAN: 4099879687197
MPN:
KVS800JB-RD-82RAA
KV212-35B82R
Series: KV
Vitrohm
default L
front L
Image may differ
Print
Key Specification:
ohmic resistance 82 Ω
Tolerance ±5 %
Power 7 W
Design radial
Assembly THT
Show 19 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
1.3209 € *
Available: 524 pcs.
Leadtime: 25 Weeks **
Total Price:
13.21 € *
Price list
Quantity
Price per unit*
10 pcs.
1.3209 €
50 pcs.
1.1662 €
200 pcs.
1.0353 €
800 pcs.
0.9163 €
3200 pcs.
0.7854 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description
Technical specifications
Download
Logistics
Compliance
Variations

Wire-wound resistors, 7.0 W, tolerance 5.0 %, type Vitrohm KV212-3.

For radial mounting, with ceramic body, compliant with DIN 45921 Part 202
Technical specifications
ohmic resistance 82 Ω
Version wirewound resistor
Design radial
Width 10 mm
Height 9 mm
Isolation voltage 2 kV
Length 25 mm
Power 7 W
max. operating temperature 350 °C
min. operating temperature -55 °C
Assembly THT
Tolerance ±5 %
Temperature coefficient ±40 ppm/K
Show similar products 0
Logistics
Country of origin PT
Customs tariff number 85332100
Original Packaging Bulk with 200 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
Variations
ohmic resistance
Unit:
Design
Isolation voltage
Unit:
Version
Width
Unit:
Length
Unit:
Tolerance
Height
Unit:
Assembly
min. operating temperature
max. operating temperature
Power
Unit:
1 item in 19 variations
