KPS800KB-RD-22RS0 | Vitrohm

Wirewound resistor, 22 Ω, 8 W, ±10 %, KPS800KB-RD-22RS0

Order No.: 38E740
EAN: 4099879689962
MPN:
KPS800KB-RD-22RS0
KP298-110B22R
Series: KP
KPS800KB-RD-22RS0 Vitrohm Wirewound Resistors Image 1
KPS800KB-RD-22RS0 Vitrohm Wirewound Resistors Image 2
Image may differ
Unit Price (€ / pc.)
0.5236 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
523.60 € *
*incl. VAT plus shipping costs
Subject to prior sale
1000 pcs.
0.5236 €

Wire-wound resistors, tolerance 10 %, type Vitrohm KP 29.

With radial PCB terminals, varnished, non-insulated, glass fiber substrate. Dielectric strength (1

Rated load 8.0 W, type KP 298-1.

Technical specifications
Filter Property Value
Version wirewound resistor
Assembly THT
Isolation voltage 75 V
Design radial
Power 8 W
ohmic resistance 22 Ω
min. operating temperature -55 °C
Tolerance ±10 %

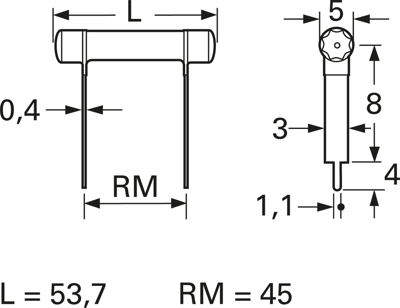

Height 17 mm
max. operating temperature 350 °C
Length 53.7 mm
Temperature coefficient -80/+500 ppm/K
Logistics
Property Value
Customs tariff number 85332100
Country of origin PT
Original Packaging Bulk with 250 pieces
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
