RH0502R200FE05 | Vishay
Wirewound resistor, 2.2 Ω, 50 W, ±1 %, RH0502R200FE05
Unit Price (€ / pc.)
10.9242 € *
Available: 361 pcs.
Total Price:
10.92 € *
Price list
Quantity
Price per unit*
1 pcs.
10.9242 €
10 pcs.
9.6271 €
100 pcs.
8.4490 €
250 pcs.
8.1277 €
1000 pcs.
7.5922 €
*incl. VAT plus shipping costs
Subject to prior sale
50/30 W, tolerance 1.0 %, type RH-50.
Certified to MiL-R-18546 RE-75 G (30 W)
Technical specifications
| Filter | Property | Value |
|---|---|---|
| ohmic resistance | 2.2 Ω | |
| max. operating temperature | 250 °C | |

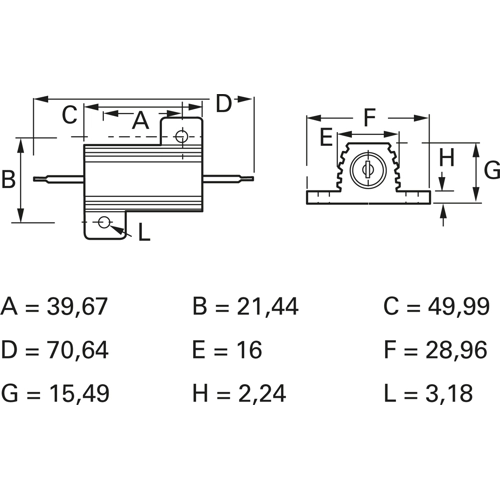

| Length | 49.99 mm | |
| min. operating temperature | -55 °C | |
| Height | 15.49 mm | |
| Assembly | chassis mounting | |
| Width | 21.44 mm | |
| Design | chassis | |
| Power | 50 W | |
| Temperature coefficient | ±50 ppm/K | |
| Version | wirewound resistor | |
| Tolerance | ±1 % |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85332900 |
| Country of origin | MX |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
