RH0501R800FE05 | Vishay

Wirewound resistor, 1.8 Ω, 50 W, ±1 %

Order No.: 63E878
EAN: 4099879704627
MPN:
RH0501R800FE05
RH-50-1%-1R8
Series: RH
Vishay
default L
front L
Image may differ
Print
Key Specification:
ohmic resistance 1.8 Ω
Tolerance ±1 %
Power 50 W
Design chassis
Assembly chassis mounting
Show 48 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
5.1527 € *
Available: 887 pcs.
Leadtime: 78 Weeks **
Total Price:
5.15 € *
Price list
Quantity
Price per unit*
1 pcs.
5.1527 €
10 pcs.
4.5458 €
100 pcs.
3.9746 €
250 pcs.
3.8199 €
1000 pcs.
3.5819 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description
Technical specifications
Download
Logistics
Compliance
Variations

50/30 W, tolerance 1.0 %, type RH-50.

Certified to MiL-R-18546 RE-75 G (30 W)
Technical specifications
ohmic resistance 1.8 Ω
Version wirewound resistor
Design chassis

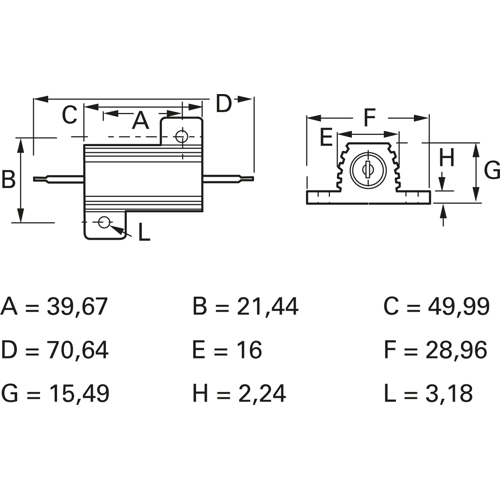

Width 21.44 mm
Height 15.49 mm
Length 49.99 mm
Power 50 W
max. operating temperature 250 °C
min. operating temperature -55 °C
Assembly chassis mounting
Tolerance ±1 %
Temperature coefficient ±50 ppm/K
Show similar products 0
Logistics
Country of origin MX
Customs tariff number 85332900
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
Variations
ohmic resistance
Unit:
Design
Version
Width
Unit:
Length
Unit:
Tolerance
Height
Unit:
Assembly
min. operating temperature
max. operating temperature
Power
Unit:
1 item in 48 variations
