RH05022R00FE05 | Vishay
Wirewound resistor, 22 Ω, 50 W, ±1 %, RH05022R00FE05
Unit Price (€ / pc.)
12.5664 € *
Available: 191 pcs.
Total Price:
12.57 € *
Price list
Quantity
Price per unit*
1 pcs.
12.5664 €
10 pcs.
11.0789 €
100 pcs.
9.7223 €
250 pcs.
9.3534 €
1000 pcs.
8.7346 €
*incl. VAT plus shipping costs
Subject to prior sale
50/30 W, tolerance 1.0 %, type RH-50.
Certified to MiL-R-18546 RE-75 G (30 W)
Technical specifications
| Filter | Property | Value |
|---|---|---|
| ohmic resistance | 22 Ω | |
| Tolerance | ±1 % | |
| Power | 50 W | |
| Design | chassis | |
| Assembly | chassis mounting | |
| Version | wirewound resistor | |
| Temperature coefficient | ±20 ppm/K | |
| min. operating temperature | -55 °C | |
| max. operating temperature | 250 °C | |

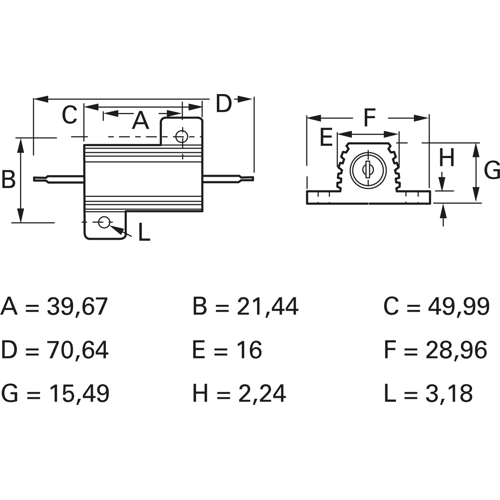

| Length | 49.99 mm | |
| Width | 21.44 mm | |
| Height | 15.49 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MX |
| Customs tariff number | 85332900 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
