WSL120600000ZEA9 | Vishay
Resistor, metal strip, SMD 1206 (3216), 0 Ω, 0.25 W, ±1 %, WSL120600000ZEA9
Unit Price (€ / pc.)
0.3570 € *
Available: 3,300 pcs.
Total Price:
0.36 € *
Price list
Quantity
Price per unit*
1 pcs.
0.3570 €
10 pcs.
0.2559 €
100 pcs.
0.2202 €
1000 pcs.
0.1702 €
*incl. VAT plus shipping costs
Subject to prior sale
SMD metal strip resistors, 0.125 to 1.0 W, tolerance 1.0 %, series Power Metal Strip, type Vishay/Dale WSL.
Low self-inductance, for current measurements and pulse applications
0.25 W, size 1206, type WSL1206.

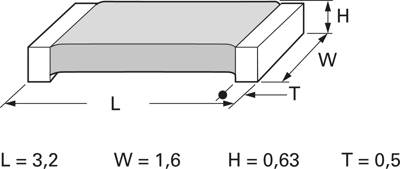

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 0.63 mm | |
| ohmic resistance | 0 Ω | |
| Design | SMD 1206 (3216) | |
| min. operating temperature | -65 °C | |
| Tolerance | ±1 % | |
| Length | 3.2 mm | |
| Width | 1.6 mm | |
| Temperature coefficient | ±3900 ppm/K | |
| Technology | metal strip | |
| Power | 0.25 W | |
| max. operating temperature | 170 °C |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 4,000 pieces |
| Customs tariff number | 85331000 |
| Country of origin | IL |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
