BYV28-150-TR | Vishay

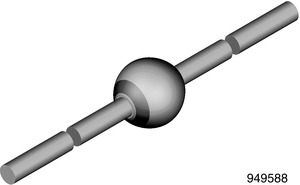

Ultrafast avalanche rectifier diode, 165 V, 3.5 A, SOD-64, BYV28-150-TR
Unit Price (€ / pc.)
0.6069 € *
Standard delivery time from the manufacturer is: 2 Weeks
Ultra-fast low-loss rectifiers.
Technical attributes (type, rated voltage, rated current, package): BYV28/150, 150 V, 3.5 A, SOD64
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Surge blocking voltage V RMS | 165 V | |
| Voltage V RRM (peak reverse voltage) | 150 V | |
| max. operating temperature | 175 °C | |
| Junction temperature (min.) | -55 °C | |
| Forward Current | 3.5 A | |
| Enclosure | SOD-64 | |
| Assembly | THT | |
| min. operating temperature | -55 °C | |
| Junction temperature (max.) | 175 °C | |
| Version | ultrafast avalanche sinterglass diode |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | HU |
| Customs tariff number | 85411000 |
| Original Packaging | Reel with 12,500 pieces |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
