VEMT2000X01 | Vishay

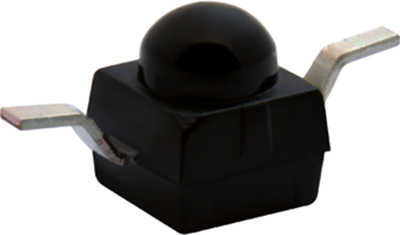

Photo transistor
Active
Product by Vishay at Bürklin Elektronik
Photo transistors, type Vishay VEMT20.
With daylight filter, AEC-Q101 qualified; Dimensions: 2.3 x 2.3 x 2.8 mm. Operating temperatures: –40 to +100 °C.
Technical attributes (type, current (Ica), detection range, spectral range of photo sensitivity, package design (GW gullwing, RGW reverse gullwing)): VEMT2000X01, 6.0 mA, ±15°, 790 to 970 nm, RGW
| Enclosure | SMD-2 | |
| max. operating temperature | 100 °C | |
| min. operating temperature | -40 °C | |
| Assembly | SMD | |
| Voltage | 20 V |
| Country of origin | PH |
| MSL | MSL 2A |
| Original Packaging | Reel with 6,000 pieces |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
