ILQ55 | Vishay

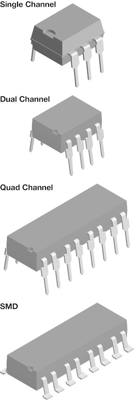

Vishay optocoupler, DIP-16, ILQ55
Unit Price (€ / pc.)
3.1892 € *
Available: 2 pcs.
Total Price:
3.19 € *
Price list
Quantity
Price per unit*
1 pcs.
3.1892 €
25 pcs.
2.7013 €
100 pcs.
2.4990 €
250 pcs.
2.3800 €
1000 pcs.
2.1777 €
*incl. VAT plus shipping costs
Subject to prior sale
Optocoupler, ILQ55, VISHAY
The ILQ55 is optically coupled isolator with gallium arsenide infrared emitters and silicon photodarlington sensors. Switching can be achieved while maintaining a high degree of isolation between driving and load circuits, with no crosstalk between channels. This optocoupler can be used to replace reed and mercury relays with advantages of long life, high speed switching and elimination of magnetic fields. This product is designed to reduce board space requirements in high density applications.
Features
- Solid state reliability
- Standard DIP packages
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 100 °C | |
| Fall time | 35 s | |
| min. operating temperature | -55 °C | |
| Number of channels | 4 | |
| Output current | 125 mA | |
| Assembly | THT | |
| Enclosure | DIP-16 | |
| Rise time | 10 s | |
| Isolation voltage | 5.3 kV |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MY |
| Customs tariff number | 85414900 |
| Original Packaging | Bar with 25 pieces |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
