ILD223-T | Vishay

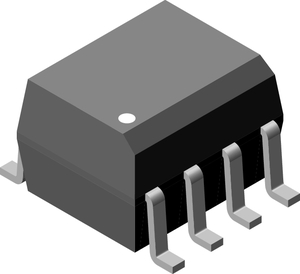

Vishay optocoupler, SOIC-8, ILD223-T

Order No.: 66S8349
EAN: 4099879001030
MPN:
ILD223-T
Series: ILD
Vishay
default L
Image may differ
Unit Price (€ / pc.)
1.4637 € *
Available: 666 pcs.
Leadtime: On Request **
Total Price:
1.46 € *
Price list
Quantity
Price per unit*
1 pcs.
1.4637 €
10 pcs.
1.2019 €
100 pcs.
1.0115 €
250 pcs.
0.8687 €
1000 pcs.
0.7616 €
*incl. VAT plus shipping costs
**Subject to prior sale

Optocoupler, ILD223-T, VISHAY

The ILD223-T is a high current transfer ratio (CTR) optocoupler. It has a gallium arsenide infrared LED emitter and silicon NPN photodarlington transistor detector. This device has CTRs tested at an LED current of 1.0 mA. This low drive current permits easy interfacing from CMOS to LSTTL or TTL. This product is constructed in a standard SOIC-8 foot print which makes it ideally suited for high density applications. In addition to eliminating through hole requirements, this package conforms to standards for surface mounted devices.

Features

  • Two channel coupler
  • Compatible with dual wave, vapor phase and IR reflow soldering
Technical specifications
Rise time 15 s
Number of channels 2
Enclosure SOIC-8
Isolation voltage 4 kV
max. operating temperature 100 °C
min. operating temperature -55 °C
Assembly SMD
Fall time 30 s
Logistics
Country of origin MY
Customs tariff number 85414900
MSL MSL 1
Original Packaging Reel with 2,000 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
