CNY17F-3 | Vishay

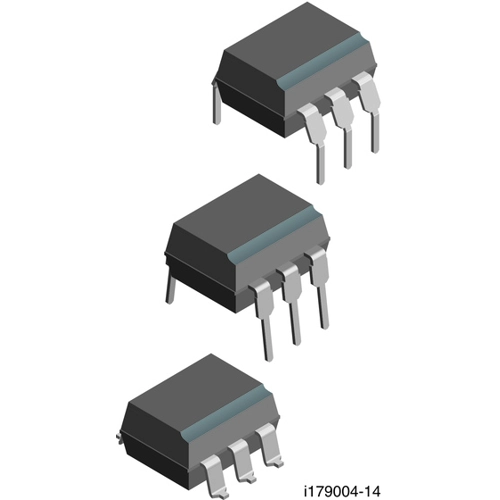

Vishay optocoupler, DIP-6, CNY17F-3
Unit Price (€ / pc.)
0.2297 € *
Standard delivery time from the manufacturer is: 12 Weeks
Optocoupler, CNY17F-3, VISHAY
The CNY17F-3 is an optocoupler consisting of a gallium arsenide infrared emitting diode optically coupled to a silicon planar phototransistor detector in a plastic plug-in DIP-6 package. The coupling device is suitable for signal transmission between two electrically separated circuits. The potential difference between the circuits to be coupled is not allowed to exceed the maximum permissible reference voltages.
Features
- No base terminal connection for improved common mode interface immunity
- Long term stability
- Industry standard dual-in-line package
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Isolation voltage | 5 kV | |
| max. operating temperature | 100 °C | |
| min. operating temperature | -55 °C | |
| Assembly | THT | |
| Fall time | 2 s | |
| Output current | 150 mA | |
| Rise time | 2 s | |
| Number of channels | 1 | |
| Enclosure | DIP-6 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85414900 |
| Original Packaging | Bar with 50 pieces |
| Country of origin | MY |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
