CNY17F-2 | Vishay

Name: Optocoupler 63 to 125 % PDIP6 CNY17F-2
Brand: Vishay
SKU: 65S4754
Price: 0.50 EUR
Availability: InStock

Optocoupler 63 to 125 % PDIP6 CNY17F-2

Order No.: 65S4754

Manufacturer: Vishay

Manufacturer SKU CNY17F-2

Manufacturer series: CNY17F

EAN: 4099879000446

about the green icons

Active

Total price

( 0.4998 € * / pcs.)

5.00 €

Available: 1,068 pcs.

Quantity

Price per unit*

10 pcs.

0.4998 €

100 pcs.

0.3570 €

500 pcs.

0.2975 €

*incl. VAT plus shipping costs

Show 5 variants

Please send price/quantity requests to info@buerklin.com

Description

Product by Vishay at Bürklin Elektronik

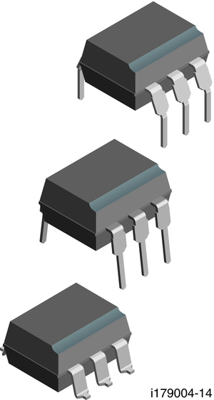

Optocoupler with photo transistor output, type CNY17F.

Without base connection; Package: PDIP6.

Technical attributes (type, CTR value): CNY17F–2, 63 to 125 %

Technical specifications

	Rise time	0.002 ms
	Number of channels	1
	Output current	150 A
	Enclosure	DIP-6
	Isolation voltage	5000 V
	max. operating temperature	100 °C
	min. operating temperature	-55 °C
	Assembly	THT
	Fall time	0.002 ms

Show similar products (0)

Logistics

Country of origin	MY
Customs tariff number	85414900
Original Packaging	Bar with 50 pieces

Compliance

RoHS conform	Yes
Date of RoHS guidelines	3/31/15
SVHC free	Yes

Download

Technical Data Sheet - EN

Technical Data Sheet

Declaration of Conformity - EN

Declaration of Conformity

Declaration of Conformity - DE

Declaration of Conformity
