6N138 | Vishay

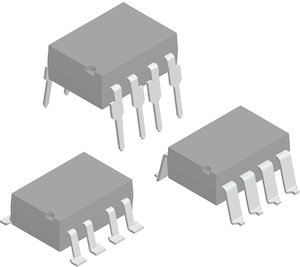

Vishay optocoupler, DIP-8, 6N138
Unit Price (€ / pc.)
0.5593 € *
Standard delivery time from the manufacturer is: On Request
Optocoupler, 6N138, VISHAY
The 6N138 consist of an AlGaAs LED optically coupled to a high gain split darlington photodetector. The split darlington configuration separating the input photodiode and the first stage gain from the output transistor pe rmits lower output saturation voltage and higher speed operation than possible with conventional darlington phototransistor optocoupler.
Applications
- Digital logic ground isolation
- Telephone ring detector
- High common mode noise line receiver
- µP bus isolation
- Current loop receiver
Technical specifications
| Assembly | THT | |
| Enclosure | DIP-8 | |
| Data transmission rate | 100000 mb/s | |
| Number of channels | 1 | |
| Isolation voltage | 5.3 kV | |
| Output current | 60 mA | |
| Rise time | 2 s | |
| Fall time | 2 s | |
| min. operating temperature | -55 °C | |
| max. operating temperature | 100 °C |
Download
Logistics
| Country of origin | JP |
| Customs tariff number | 85414900 |
| Original Packaging | Bar with 50 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
