TDSG1160 | Vishay

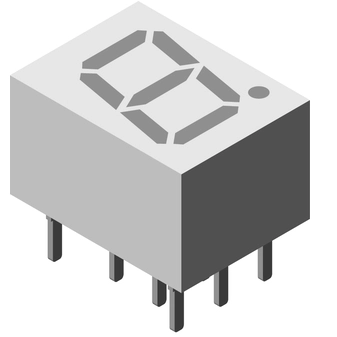

7 segment display, THT, green, 562 nm, 450 to 6000 mcd, TDSG1160
Order No.: 71S2244
MPN:
TDSG1160
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
1.6541 € *
Standard delivery time from the manufacturer is: 1 Week
7-segment displays, type ..1150/1160.
Font height: 7.0 mm. Rated current: 10 mA. Package dimensions: 9.9 x 7.4 x 6.0 mm.
Technical attributes (type, emission color, wavelength, luminous intensity (typical) at 10 mA, common connection): TDSG1160, green, 565 nm, 6000 µcd, cathode
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | THT | |
| Colour of the LED | green | |
| Light intensity min. | 0.45 cd | |
| Light intensity typ. | 6 cd | |
| On-State Voltage | 2.4 V | |
| Wavelength | 562 nm | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 85 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85414100 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
