VSMY2850G | Vishay

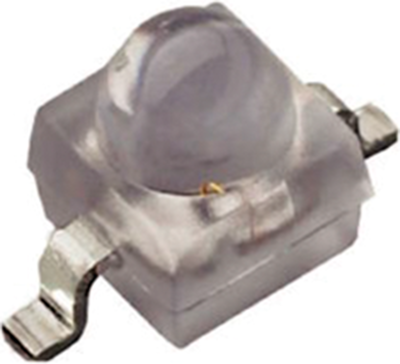

Infrared LED, VSMY2850G
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
0.5236 € *
Standard delivery time from the manufacturer is: 10 Weeks
IR LEDs, type Vishay VSMY2850.
High-speed, high radiated power and radiation intensity; Dimensions: 2.3 x 2.3 x 2.8 mm. Operating temperatures: –40 to +85 °C.
Technical attributes (type, wavelength, radiation angle, package design (GW gullwing, RGW reverse gullwing)): VSMY2850G, 850 nm, ±10°, GW
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | SMD | |
| Wavelength | 850 nm | |
| Forward Current | 100 mA | |
| Radiation angle | 20 ° | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 85 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PH |
| Customs tariff number | 85414100 |
| MSL | MSL 2A |
| Original Packaging | Reel with 6,000 pieces |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
