BFC237065332 | Vishay

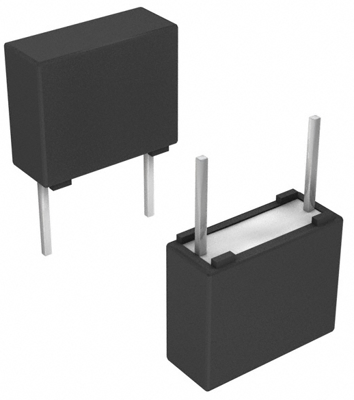

MKT film capacitor, 3.3 nF, ±10 %, 400 V (DC), PET, 5.08 mm, BFC237065332
Unit Price (€ / pc.)
0.4998 € *
Standard delivery time from the manufacturer is: On Request
Film capacitor (MKT), type Vishay/BCcomponents MKT 370.
Self-sealing, radial connections
Rated voltage 400 VDC/220 VAC.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Dielectric material | PET | |
| Rated voltage (AC) | 220 V | |
| Capacity | 3.3 nF | |
| max. operating temperature | 105 °C | |

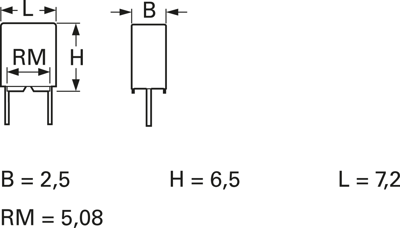

| Length | 7.2 mm | |
| min. operating temperature | -55 °C | |
| Height | 6.5 mm | |
| Width | 2.5 mm | |
| Grid | 5.08 mm | |
| Design | radial | |
| Number of pins | 2 | |
| Rated voltage (DC) | 400 V | |
| Tolerance | ±10 % |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85322200 |
| Original Packaging | Ammopack with 2,000 pieces |
| Country of origin | BE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
