ZRC00JG1021H00L | Vishay
Electrolytic capacitor, 1000 µF, 50 V (DC), ±20 %, radial, pitch 7.5 mm, Ø 16 mm, ZRC00JG1021H00L
Unit Price (€ / pc.)
1.3328 € *
Available: 918 pcs.
Total Price:
1.33 € *
Price list
Quantity
Price per unit*
1 pcs.
1.3328 €
10 pcs.
1.0829 €
100 pcs.
0.9044 €
250 pcs.
0.7854 €
1000 pcs.
0.6902 €
*incl. VAT plus shipping costs
Subject to prior sale

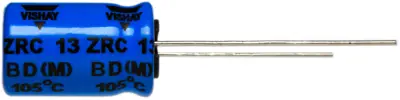

Electrolytic capacitor in aluminum can, type Vishay ZRC.
For vertical mounting, with low ESR
Rated voltage 50 VDC.

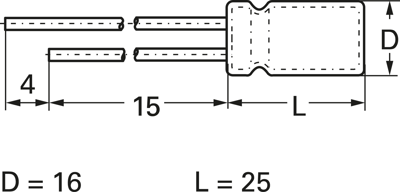

Technical specifications
| Filter | Property | Value |
|---|---|---|
| diameter | 16 mm | |
| Length | 25 mm | |
| Capacity | 1000 µF | |
| Rated voltage (DC) | 50 V | |
| max. operating temperature | 105 °C | |
| min. operating temperature | -55 °C | |
| Version | polar | |
| Ripple current | 2.555 A | |
| Design | radial | |
| Grid | 7.5 mm | |
| Tolerance | ±20 % |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85322200 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
