ZRC00DG2211JTNL | Vishay
Electrolytic capacitor, 220 µF, 63 V (DC), ±20 %, radial, pitch 5 mm, Ø 10 mm, ZRC00DG2211JTNL
Unit Price (€ / pc.)
0.2440 € *
Standard delivery time from the manufacturer is: On Request

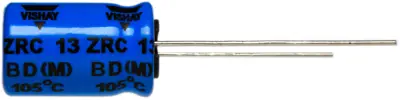

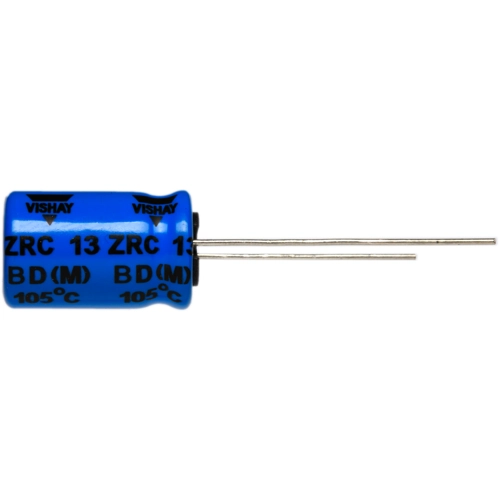

Electrolytic capacitor in aluminum can, type Vishay ZRC.
For vertical mounting, with low ESR
Rated voltage 63 VDC.
Technical specifications
| Rated voltage (DC) | 63 V | |
| Capacity | 220 µF | |

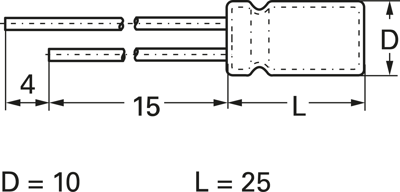

| diameter | 10 mm | |
| Grid | 5 mm | |
| Length | 25 mm | |
| Version | polar | |
| Design | radial | |
| min. operating temperature | -55 °C | |
| Tolerance | ±20 % | |
| max. operating temperature | 105 °C | |
| Ripple current | 1.35 A |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85322200 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
