GRC00PB3302ATFL | Vishay

Electrolytic capacitor, 33 µF, 100 V (DC), ±20 %, radial, pitch 5 mm, Ø 8 mm, GRC00PB3302ATFL

Order No.: 12D4940
EAN: 4099879869173
MPN:
GRC00PB3302ATFL
Series: GRC
GRC00PB3302ATFL Vishay Electrolytic Capacitors Image 1
GRC00PB3302ATFL Vishay Electrolytic Capacitors Image 2
Image may differ
Unit Price (€ / pc.)
0.0809 € *
Standard delivery time from the manufacturer is: 20 Weeks
Total Price:
809.20 € *
*incl. VAT plus shipping costs
Subject to prior sale
10000 pcs.
0.0809 €

Electrolytic capacitor in aluminum can, type Vishay GRC.

For vertical mounting

Rated voltage 100 VDC.

Technical specifications
Filter Property Value
Tolerance ±20 %
Grid 5 mm
min. operating temperature -40 °C
max. operating temperature 105 °C

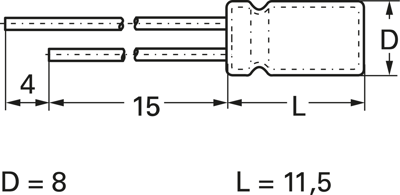

diameter 8 mm
Length 11.5 mm
Design radial
Version polar
Rated voltage (DC) 100 V
Capacity 33 µF
Ripple current 130 mA
Logistics
Property Value
Country of origin CN
Customs tariff number 85322200
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
