GRC00KK2221J00L | Vishay

Electrolytic capacitor, 2200 µF, 63 V (DC), ±20 %, radial, pitch 7.5 mm, Ø 18 mm, GRC00KK2221J00L

Order No.: 12D4912
EAN: 4099879869104
MPN:
GRC00KK2221J00L
Series: GRC
GRC00KK2221J00L Vishay Electrolytic Capacitors Image 1
GRC00KK2221J00L Vishay Electrolytic Capacitors Image 2
Image may differ
Unit Price (€ / pc.)
1.7731 € *
Available: 96 pcs.
Total Price:
1.77 € *
Price list
Quantity
Price per unit*
1 pcs.
1.7731 €
10 pcs.
1.4756 €
100 pcs.
1.2733 €
250 pcs.
1.1543 €
1000 pcs.
1.0591 €
*incl. VAT plus shipping costs
Subject to prior sale

Electrolytic capacitor in aluminum can, type Vishay GRC.

For vertical mounting

Rated voltage 63 VDC.

Technical specifications
Filter Property Value
max. operating temperature 105 °C
diameter 18 mm
Rated voltage (DC) 63 V
Version polar
Grid 7.5 mm
Ripple current 2.28 A
Capacity 2200 µF
Tolerance ±20 %
min. operating temperature -40 °C

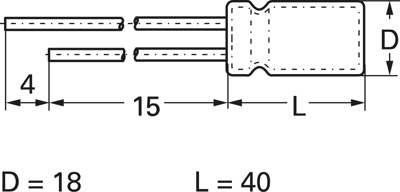

Design radial
Length 40 mm
Logistics
Property Value
Country of origin CN
Customs tariff number 85322200
Compliance
Property Value
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
