GRC00FG2212ATNL | Vishay
Electrolytic capacitor, 220 µF, 100 V (DC), ±20 %, radial, pitch 5 mm, Ø 12.5 mm, GRC00FG2212ATNL
Unit Price (€ / pc.)
0.2713 € *
Standard delivery time from the manufacturer is: 20 Weeks
Electrolytic capacitor in aluminum can, type Vishay GRC.
For vertical mounting
Rated voltage 100 VDC.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Tolerance | ±20 % | |

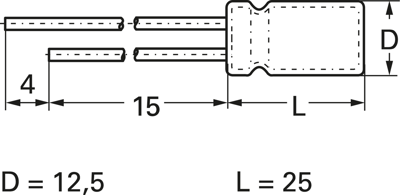

| Grid | 5 mm | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 105 °C | |
| diameter | 12.5 mm | |
| Length | 25 mm | |
| Design | radial | |
| Version | polar | |
| Rated voltage (DC) | 100 V | |
| Capacity | 220 µF | |
| Ripple current | 440 mA |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85322200 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
