GRC00FE4711JTNL | Vishay
Electrolytic capacitor, 470 µF, 63 V (DC), ±20 %, radial, pitch 5 mm, Ø 12.5 mm, GRC00FE4711JTNL
Unit Price (€ / pc.)
0.7378 € *
Available: 1,005 pcs.
Total Price:
0.74 € *
Price list
Quantity
Price per unit*
1 pcs.
0.7378 €
10 pcs.
0.4641 €
50 pcs.
0.3808 €
250 pcs.
0.3213 €
1000 pcs.
0.2725 €
*incl. VAT plus shipping costs
Subject to prior sale
Electrolytic capacitor in aluminum can, type Vishay GRC.
For vertical mounting
Rated voltage 63 VDC.

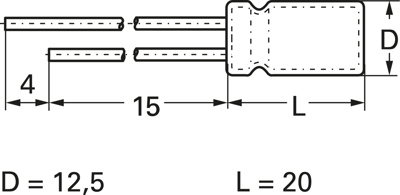

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 5 mm | |
| diameter | 12.5 mm | |
| Rated voltage (DC) | 63 V | |
| max. operating temperature | 105 °C | |
| Tolerance | ±20 % | |
| Length | 20 mm | |
| Capacity | 470 µF | |
| min. operating temperature | -40 °C | |
| Ripple current | 640 mA | |
| Design | radial | |
| Version | polar |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85322200 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
