GRC00AA3R32ATFL | Vishay

Electrolytic capacitor, 3.3 µF, 100 V (DC), ±20 %, radial, pitch 5 mm, Ø 5 mm, GRC00AA3R32ATFL

Order No.: 12D4924
EAN: 4099879869159
MPN:
GRC00AA3R32ATFL
Series: GRC
GRC00AA3R32ATFL Vishay Electrolytic Capacitors Image 1
GRC00AA3R32ATFL Vishay Electrolytic Capacitors Image 2
Image may differ
Unit Price (€ / pc.)
0.0345 € *
Standard delivery time from the manufacturer is: 20 Weeks
Total Price:
690.20 € *
*incl. VAT plus shipping costs
Subject to prior sale
20000 pcs.
0.0345 €

Electrolytic capacitor in aluminum can, type Vishay GRC.

For vertical mounting

Rated voltage 100 VDC.

Technical specifications
Filter Property Value
Tolerance ±20 %

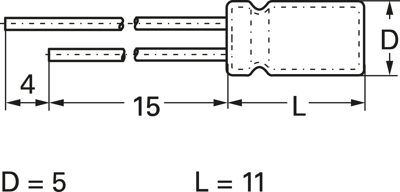

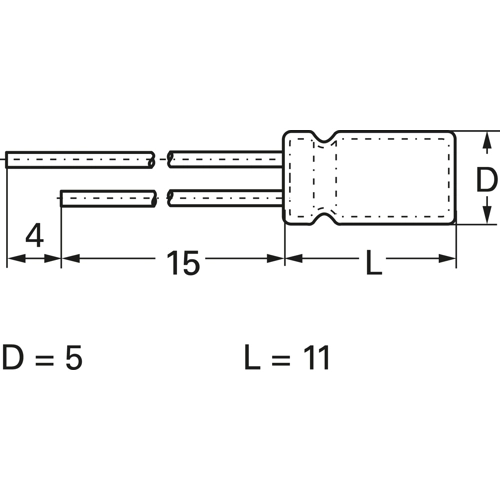

Grid 5 mm
min. operating temperature -40 °C
max. operating temperature 105 °C
diameter 5 mm
Length 11 mm
Design radial
Version polar
Rated voltage (DC) 100 V
Capacity 3.3 µF
Ripple current 31 mA
Logistics
Property Value
Country of origin CN
Customs tariff number 85322200
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
