T60403-D4721-X007 | Vacuumschmelze

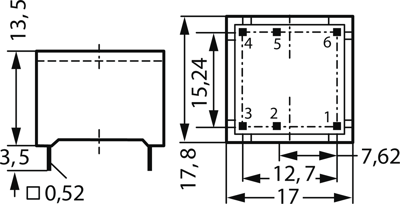

Control transformer, 17 mm, 17.8 mm, 13.5 mm

Order No.: 66C516
EAN: 4099889048728
MPN:
T60403-D4721-X007
Series: T60403
Vacuumschmelze

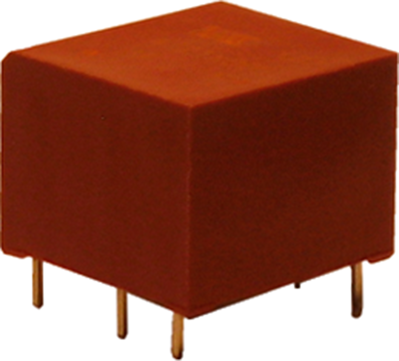

T60403-D4721-X007 Vacuumschmelze Coupled Inductors Image 1
T60403-D4721-X007 Vacuumschmelze Coupled Inductors Image 2
Image may differ
Unit Price (€ / pc.)
11.2336 € *
Available: 228 pcs.
Next delivery: 400 pcs. on 2024-11-15
Leadtime: 2 Weeks **
Total Price:
11.23 € *
Price list
Quantity
Price per unit*
1 pcs.
11.2336 €
10 pcs.
9.8889 €
50 pcs.
9.2225 €
150 pcs.
8.8060 €
500 pcs.
8.3657 €
*incl. VAT plus shipping costs
**Subject to prior sale

Control transformers, type VAC T60403-D.

Suitable for use as control, isolating or ignition transformer. With low coupling capacitance for high immunity to interference. Low leakage inductance for distortion-free control pulses with fast rate-of-rise

Dielectric strength 500 VRMS and transformer ratio 3 : 1 : 1, type T60403-D.

Technical specifications
Design THT
Width 17.8 mm
Height 13.5 mm
Length 17 mm
max. operating temperature 85 °C
min. operating temperature -25 °C
Winding ratio 3:1:1
Logistics
Country of origin CN
Customs tariff number 85043180
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
