T60403-D4097-X055 | Vacuumschmelze

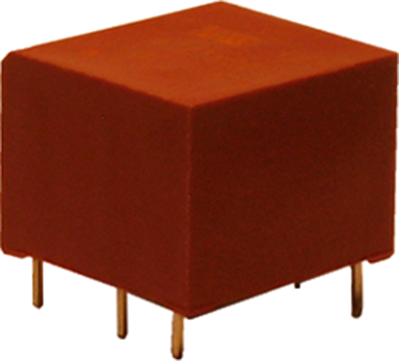

Control transformer, 1:1:1, 6.5 mH, 280 mΩ, T60403-D4097-X055
Unit Price (€ / pc.)
10.0317 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
1,003.17 € *
Price list
Quantity
Price per unit*
100 pcs.
10.0317 €
500 pcs.
9.5200 €
*incl. VAT plus shipping costs
Subject to prior sale
Control transformers, type VAC T60403-D.
Suitable for use as control, isolating or ignition transformer. With low coupling capacitance for high immunity to interference. Low leakage inductance for distortion-free control pulses with fast rate-of-rise
Dielectric strength 380 VRMS and transformer ratio 1 : 1 : 1, type T60403-D.

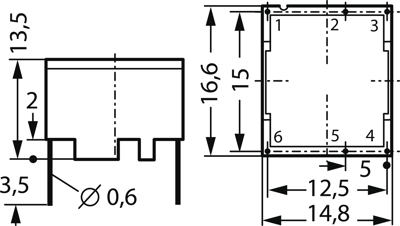

Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 85 °C | |
| Length | 16 mm | |
| Winding ratio | 1:1:1 | |
| min. operating temperature | -40 °C | |
| Height | 13.5 mm | |
| Inductance | 6.5 mH | |
| Width | 14.8 mm | |
| min. frequency | 1 kHz | |
| Design | THT | |
| DC resistance | 280 mΩ | |
| Product type | control transformer |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85043180 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
