SZ0105 | VA Labs

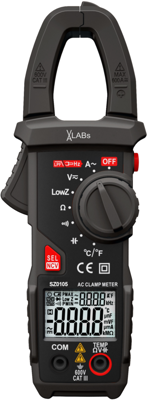

Clamp meter SZ0105, 600 A (AC), 600 V (DC), 600 V (AC), opening 24 mm, CAT III 600 V

Order No.: 21K590
EAN: 4260508890442
MPN:
SZ0105
VA Labs
SZ0105 VA Labs Clamp Meters
Image may differ
Unit Price (€ / pc.)
36.4735 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
36.47 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
36.4735 €
The professional clamp meter SZ0105 has a display range of 6,000 counts and enables inductive, non-contact measurement of alternating currents up to 600 A AC. Thanks to the integrated multimeter function, DC and AC voltages up to 600 V AC/DC, resistors up to 60 MOhm, frequencies up to 1 kHz, capacitances up to 6 mF and temperatures can also be reliably measured and displayed on the dual display. In addition, the CAT III current clamp SZ0105 enables important additional functions, such as non-contact voltage testing (NCV), continuity testing, measurement hold function (HOLD) and LowZ function. Scope of delivery: current clamp SZ0105, batteries, measuring leads, manual
Technical specifications
Version clamp meter
TRMS possible No
max. measured value (frequency) 1 kHz
max. measured current value (AC) 600 A
max. resistance range 60 MΩ
min. Measured value (frequency) 0.1 Hz
max. voltage measuring range (AC) 600 V
max. voltage measuring range (DC) 600 V
Surge voltage category CAT III 600 V
Pliers opening 24 mm
Logistics
Country of origin CN
Customs tariff number 90303100
MSL MSL 1
Compliance
RoHS conform Yes
Date of RoHS guidelines 6/8/11
SVHC free Yes
