KT-610522-2F-100M4 | TTL Network
LWL mobile cable, 2 x SC/UPC-SX to 2 x SC/UPC-SX, 100 m, OM4, multimode 50/125 µm, KT-610522-2F-100M4
Unit Price (€ / pc.)
1,188.0484 € *
Standard delivery time from the manufacturer is: 1 Week
FO Mobile Cable, KT-610522-2F-100M4, TTL Network

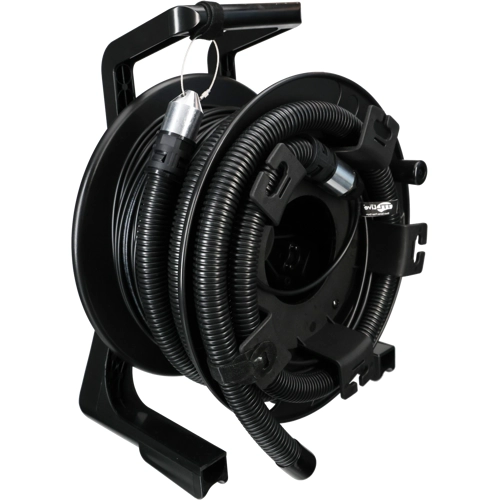

This robust mobile cable on a high-quality cable reel from the "Black Series" is designed for high transmission rates and minimal attenuation. The steel-armored cable offers optimal protection against damage and is ideal for demanding environments. The black jacket allows for unobtrusive installation. Removable protective sleeves with a pull-in aid allow for up to 12 fibers to be removed for installation on end devices. Many connector variants, fiber types, and cable lengths are available. The Black Series ensures maximum reliability under the toughest conditions.
Features
- Event & industry-ready: Perfect for the toughest operating conditions
- Easy installation: Protective conduits with pull-through aid for quick assembly
- Steel-armored: Maximum protection against mechanical stress
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | LWL mobile cable | |
| Connection (1) | 2 x SC/UPC-SX | |
| Connection (2) | 2 x SC/UPC-SX | |
| Cable length | 100 m | |
| Category | OM4 | |
| Chamfer type | multimode 50/125 µm | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85447000 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
