TSPC 120-148 | TRACO POWER
Power supply, 48 VDC, 2.5 A, 120 W, TSPC 120-148
Unit Price (€ / pc.)
131.9710 € *
Available: 0 pcs.
Leadtime: 22 Weeks **
Total Price:
131.97 € *
Price list
Quantity
Price per unit*
1 pcs.
131.9710 €
10 pcs.
118.7739 €
*incl. VAT plus shipping costs
**Subject to prior sale

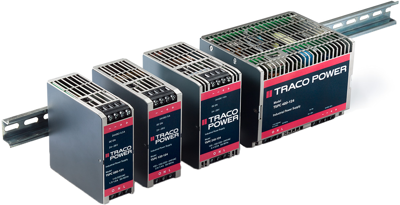

Power supply, TSPC 120-148, Traco
The TSPC 120-148 power supply is used in harsh industrial environments. Excellent electrical specifications and high immunity to electrical noise make this compact module the best choice for reliable industrial systems and machines.
Features
- Rugged metal housing for harsh industrial environments
- Industrial operating temperature range: -25 °C to +70 °C
- Overload and overtemperature protection
- Performance increase up to 120
- Power good signal
- Shock and vibration resistant
Technical specifications
| Degree of protection (IP) | IP20 | |
| Depth | 110 mm | |
| Output voltage DC | 48 VDC | |
| Output current | 2.5 A | |
| Width | 46 mm | |
| Height | 110 mm | |
| Power | 120 W | |
| Number of outputs | 1 | |
| efficiency | 93 % | |
| Input voltage AC | 85-132 VAC, 187-264 VAC |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85043180 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
