TSP-BCM24A | TRACO POWER
Power supply, 24 to 28 VDC, 25 A, 600 W, TSP-BCM24A
Unit Price (€ / pc.)
297.6071 € *
Available: 0 pcs.
Leadtime: 20 Weeks **
Total Price:
297.61 € *
Price list
Quantity
Price per unit*
1 pcs.
297.6071 €
10 pcs.
267.8452 €
*incl. VAT plus shipping costs
**Subject to prior sale

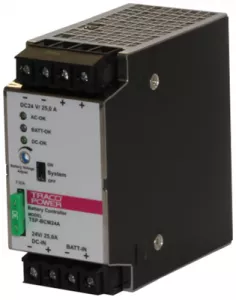

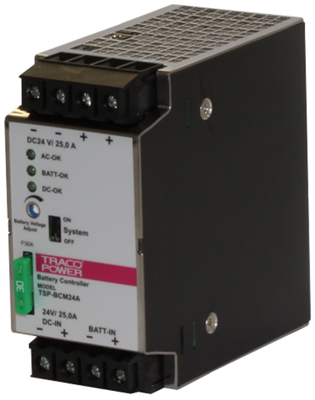

Power supply, TSP-BCM24A, Traco
This module provides a professional battery management system for charging and monitoring an external lead-acid battery. The connected battery is charged by the power supply and kept in the state of charge. In the event of a power failure, the battery provides the output power until the battery is discharged. To avoid overcharging the battery, an external temperature sensor automatically adjusts the battery voltage to the required end-of-charge voltage. This can extend the service life of the battery.
Features
- Battery protection for overvoltage, deep discharge, short circuit and polarity reversal
- Alarm outputs for input, output and battery status
- Remote On/Off for battery and power supply
- Controlled charging end voltage by temperature sensor
- International security
Technical specifications
| Number of outputs | 1 | |
| Output voltage DC | 24 to 28 VDC | |
| Output current | 25 A | |
| Width | 54 mm | |
| Input voltage AC | 24-28 VDC | |
| Height | 110 mm | |
| Power | 600 W | |
| Degree of protection (IP) | IP20 | |
| Depth | 110 mm |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85043180 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
